JX2212 过压?；ば酒?/h1>
产品介绍
The JX2212 is an Over-Voltage-Protection (OVP)
and Over-Current-Protection (OCP) IC with
adjustable OCP thresholds current.
It can disconnect
IN and OUT to protect load when wrong input
operating conditions are detected. The maximum
operation voltage and current of JX2212 are 36V and
2A.
The internal default over-voltage thresholds is
6.1V .
The maximum operation current of JX2212 is
2A, over current protection will be triggered if
operation current is large than 2.3A with ISET pin
floating, and the OCP current decreases if Rset is
defined, as the value of Rset increases,the OCP
current decreases.
JX2212 also has internal over
temperature protection (OTP) function, it can monitor
chip temperature to protect the device.
产品特点
Typical RON: 130mΩ N-Channel MOSFET @5V/1A
Maximum Output Current: 2A.
Maximum input voltage: 36V
Internal Over-voltage Lockout : 6.1V ±3% accuracy
Internal Over-current Lockout :
2.3A (Typ.) (ISET pin Floating)
Adjustable OCP threshold current:
OCP adjustment range: 700mA~2.3A
Internal Thermal-Shutdown Protection
ESD Protected: Human Body Model：
JESD22-A114(All pins)±2KV
SOT23-6L、DFN2×2-8L
产品应用
全球定位系统
个人多媒体系统
TWS耳机充电盒
平板电脑
数码相机
网络摄像机

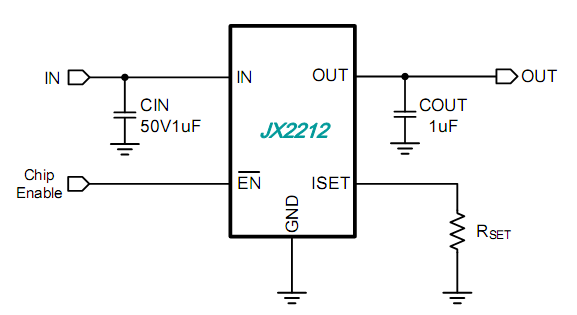

应用电路图原理

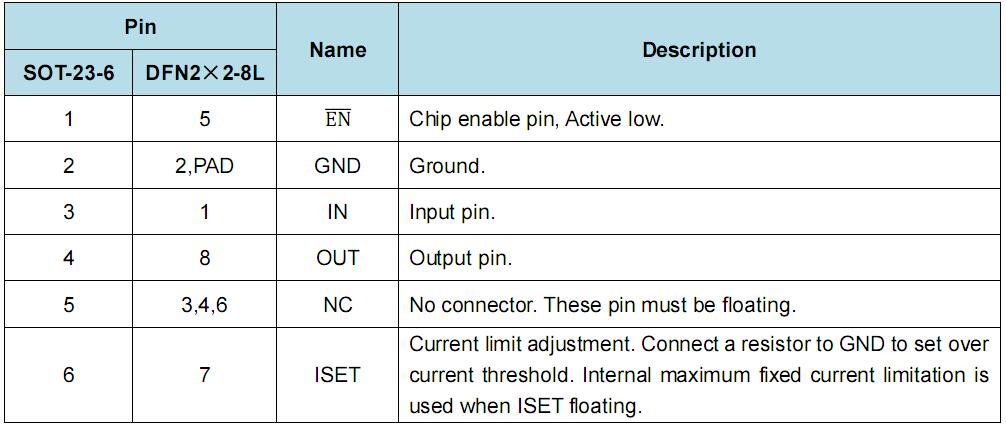

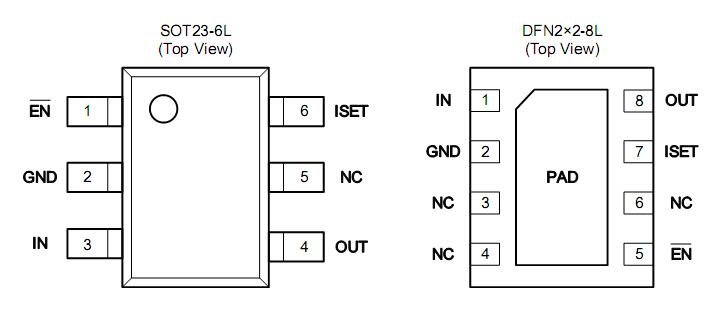

引脚定义及功能详解
Note: RSET=100K, IOCP_MIN=1.1A
产品介绍
The JX2212 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) IC with adjustable OCP thresholds current.
It can disconnect IN and OUT to protect load when wrong input operating conditions are detected. The maximum operation voltage and current of JX2212 are 36V and 2A.
The internal default over-voltage thresholds is 6.1V .
The maximum operation current of JX2212 is 2A, over current protection will be triggered if operation current is large than 2.3A with ISET pin floating, and the OCP current decreases if Rset is defined, as the value of Rset increases,the OCP current decreases.
JX2212 also has internal over temperature protection (OTP) function, it can monitor chip temperature to protect the device.
产品特点
Typical RON: 130mΩ N-Channel MOSFET @5V/1A
Maximum Output Current: 2A.
Maximum input voltage: 36V
Internal Over-voltage Lockout : 6.1V ±3% accuracy
Internal Over-current Lockout : 2.3A (Typ.) (ISET pin Floating)
Adjustable OCP threshold current: OCP adjustment range: 700mA~2.3A
Internal Thermal-Shutdown Protection
ESD Protected: Human Body Model： JESD22-A114(All pins)±2KV
SOT23-6L、DFN2×2-8L
产品应用
全球定位系统
个人多媒体系统
TWS耳机充电盒
平板电脑
数码相机
网络摄像机
应用电路图原理
引脚定义及功能详解
Note: RSET=100K, IOCP_MIN=1.1A
